Sicut stella producta fabricae professionalis, Tianjin Beida Cable Group Co, Ltd., LSZH Insulated Single Core Cable hereditat societatis technicae cumulus facultatem et innovationis fere 40 annos, et creditum est ut clientibus solutiones GENERALIS funem praebeat.
Ab anno 1989 erecta, Beida Group constanter in fune industriae potentiae progressus est et amplam recognitionem et honorem tum intra tum extra industriam vicit. LSZH insulae funiculi unius nuclei late in distribuendis scriniis, distributionibus tabulis ac variis domesticis et industriae viribus systematibus illustrandis ob egregiam earum ignis resistentiam et notae gasi non mordax, invigilandi discrimina rerum et personas in subitis condicionibus, sicut ignes, elevantur. Elige Beida, elige salutem et qualitatem certitudinis.
Singulum Core Cable insulatum LSZH quod constat ex conductore aeris T1R et polyolefin transmisso LSOH (etiam LSOH thermosetting) appellatum.

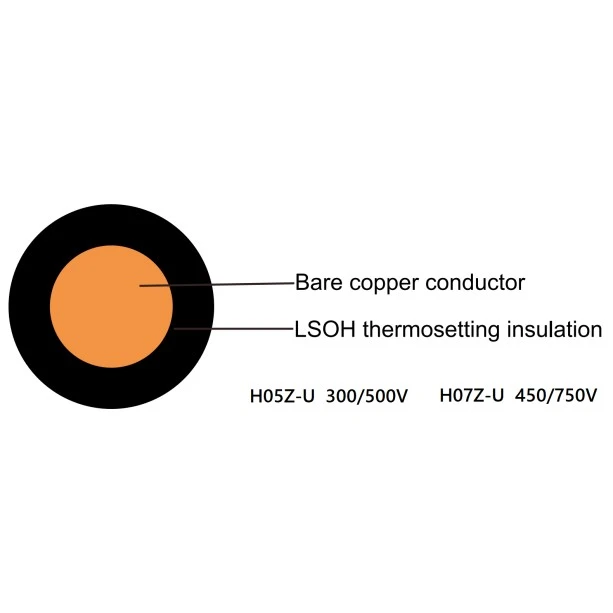

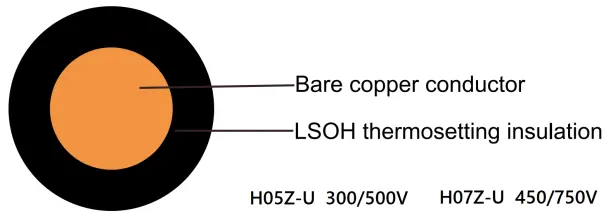

Conductor: H05Z-U H07Z-U: Solidum aeneum nudum unicum filum ad EN 60228 cl-1

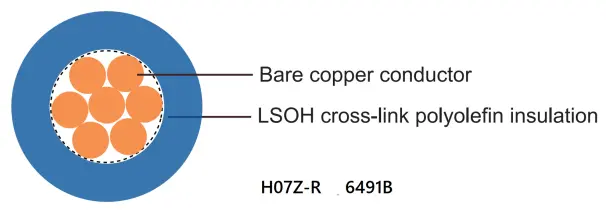

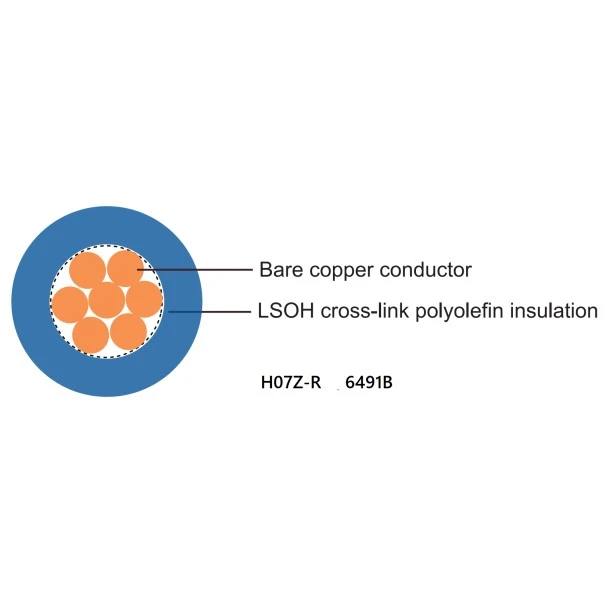

H07Z-R (6491B): Strands conductor ad EN 60228 cl-2

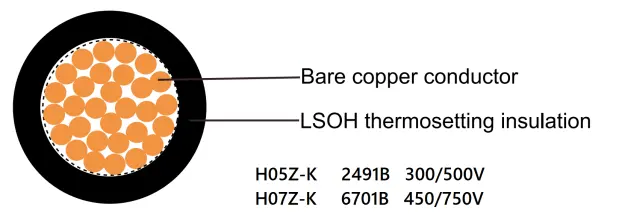

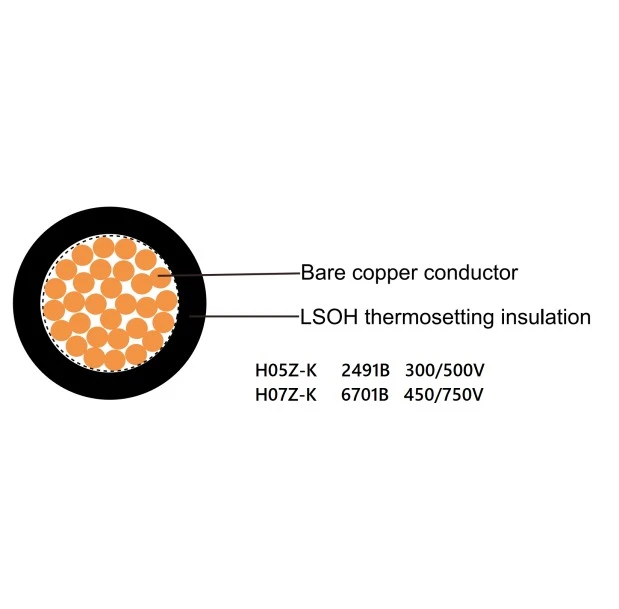

H05Z-K (2491B) H07Z-K(6701B): fila aeris subtilia ad EN 60228 cl-5.
Insulatio: Fumus humilis nulla halogen polyolefin composita ex EI 5 ad EN 50363-5
Core Color: Red, Flavus, Viridis, Caeruleus, Viridis / Flavus, Niger, Brown, Albus, Grey, Hyacinthum, Grey, Aureum, Pink
1. Contra PVC rudentes insulatas, LSOH rudentes insulae non gignunt vapores mordaces exustos.
2. LSOH funes insulatae in frequentibus locis (ut aedificiis publicis et regiminis) adhiberi possunt, ubi fumus et fumi toxici periculum vitae causant.
3. BD Group magnam copiam productorum inventarii habet, et funes celeriter tradi possunt.
4. Qualitas certa est et technicis necessitatibus occurrere potest BS 7211 .
5. Potest in rotulis vel fasciculis sarcinari.
6. Diversos gradus flammeos retardantes et funes ignitos renitentes secundum exigentias emptoris producere possumus.
Rated intentione: H07Z-U, H07Z-R (6491B), H07Z-K (6701B), 450/750V.
H05Z-U, H05Z-K (2491B), 300/500V
Test voltage: H07Z-U, H07Z-R (6491B), H07Z-K (6701B), 2500 V
H05Z-U, H05Z-R, H05Z-K (2491B), 2000V
Resistentia conductor: Vide infra sheet
Temperatus operandi: -5º C ad +105º C
Circulus brevis temperatus: +250 ºC
Minimum Flexing Flexing radij: 15* OD;
Minimum Static Bending radii: 10* OD;
Flamma retardat: secundum IEC 60332-1-2
Dimensio magnitudinis: Vide infra sheet
|
Type |
Conductor |
Insulation |
Electrical Characteristic |
|||
|
Nominal Area |
Structura conductoris |
Insulation Crassitudo |
Super Diameter |
Resistentia conductor ad 20 Max |
||
|
(mm) |
||||||
|
mm |
No./mm |
mm |
Min |
Max |
Ω／km |
|
|
H07Z-U |
1.5 |
1/1.38 |
0.7 |
2.6 |
3.2 |
12.1 |
|
2.5 |
1/1.78 |
0.8 |
3.2 |
3.9 |
7.41 |
|
|
4 |
1/2.25 |
0.8 |
3.6 |
4.4 |
4.61 |
|
|
6 |
1/2.76 |
0.8 |
4.1 |
5 |
3.08 |
|
|
H07Z-R (6491B) |
1.5 |
7/0.52 |
0.7 |
2.7 |
3.3 |
12.1 |
|
2.5 |
7/0.67 |
0.8 |
3.3 |
4 |
7.41 |
|
|
4 |
7/0.84 |
0.8 |
3.8 |
4.6 |
4.61 |
|
|
6 |
7/1.03 |
0.8 |
4.3 |
5.2 |
3.08 |
|
|
10 |
7/1.32 |
1.0 |
5.6 |
6.7 |
1.83 |
|
|
16 |
7/1.67 |
1 |
6.4 |
7.8 |
1.15 |
|
|
25 |
7/2.10 |
1.2 |
8.1 |
9.7 |
0.727 |
|
|
35 |
7/2.47 |
1.2 |
9 |
10.9 |
0.524 |
|
|
50 |
19/1.75 |
1.4 |
10.6 |
12.8 |
0.387 |
|
|
70 |
19/2.10 |
1.4 |
12.1 |
14.6 |
0.268 |
|
|
95 |
19/2.48 |
1.6 |
14.1 |
17.1 |
0.193 |
|
|
120 |
37/2.00 |
1.6 |
15.6 |
18.8 |
0.153 |
|
|
150 |
37/2.22 |
1.8 |
17.3 |
20.9 |
0.124 |
|
|
185 |
37/2.48 |
2 |
19.3 |
23.3 |
0.0991 |
|
|
240 |
61/2.22 |
2.2 |
22 |
26.6 |
0.0754 |
|
|
H07Z-K (6701B) |
1.5 |
30/0.24 |
0.7 |
2.8 |
3.4 |
13.3 |
|
2.5 |
49/0.24 |
0.8 |
3.4 |
4.1 |
7.98 |
|
|
4 |
56/0.29 |
0.8 |
3.9 |
4.8 |
4.95 |
|
|
6 |
83/0.29 |
0.8 |
4.4 |
5.3 |
3.30 |
|
|
10 |
74/0.40 |
1.0 |
5.7 |
6.8 |
1.91 |
|
|
16 |
117/0.40 |
1 |
6.7 |
8.1 |
1.21 |
|
|
25 |
182/0.40 |
1.2 |
8.4 |
10.2 |
0.78 |
|
|
35 |
256/0.40 |
1.2 |
9.7 |
11.7 |
0.554 |
|
|
50 |
367/0.40 |
1.4 |
11.5 |
13.9 |
0.386 |
|
|
70 |
320/0.51 |
1.4 |
13.2 |
16 |
0.272 |
|
|
95 |
423/0.51 |
1.6 |
15.1 |
18.2 |
0.206 |
|
|
120 |
541/0.51 |
1.6 |
16.7 |
20.2 |
0.161 |
|
|
150 |
675/0.51 |
1.8 |
18.6 |
22.5 |
0.129 |
|
|
185 |
822/0.51 |
2 |
20.6 |
24.9 |
0.106 |
|
|
240 |
1088/0.51 |
2.2 |
23.5 |
28.4 |
0.0801 |
|
|
Type |
Conductor |
Insulation |
Electrical Characteristic |
|||
|
Nominal Area |
Structura conductoris |
Insulation Crassitudo |
Super Diameter |
Resistentia conductor ad 20 Max |
||
|
(mm) |
||||||
|
mm |
No./mm |
mm |
Min |
Max |
Ω／km |
|
|
H05Z-U |
0.5 |
1/0.80 |
0.6 |
1.9 |
2.3 |
39.0 |
|
0.75 |
1/0.97 |
0.6 |
2.1 |
2.5 |
26.0 |
|
|
1 |
1/1.13 |
0.6 |
2.2 |
2.7 |
19.5 |
|
|
H05Z-R |
0.5 |
7/0.30 |
0.6 |
2.0 |
2.4 |
39.0 |
|
0.75 |
7/0.37 |
0.6 |
2.2 |
2.6 |
26.0 |
|
|
1 |
7/0.43 |
0.6 |
2.3 |
2.8 |
19.5 |
|
|
H05Z-K (2491B) |
0.5 |
16/0.20 |
0.6 |
2.1 |
2.5 |
39.0 |
|
0.75 |
24/0.20 |
0.6 |
2.2 |
2.7 |
26.0 |
|
|
1 |
32/0.20 |
0.6 |
2.4 |
2.8 |
19.5 |
|
1. Technical Services: Tianjin Beida Group necessaria officia technica praebere potest ex actualibus clientium exigentiis, sicut technicae gubernationis in delectu filorum et anulorum, impositionis et institutionis, in-site probationis, etc.
2. Qualitas fluit tractatio: Acceptis opinionibus ab utentibus circa quaestiones qualitates electricorum filorum et anulorum, BD Cable Group responsionem praebebit intra 24 horas. Fundata in re ipsa situm, solutiones quaestionum offeremus vel technicos professionales mittendos ad situm ad quaestiones qualitates tractandas.
3. Sustentatio vel repositio filorum electricorum et anulorum: Per warantum periodum electricum filorum et evulsarum, si quaecunque qualitates quaestiones occurrunt propter defectus qualitates in materia, consilio, vel productione et processu fabricandi filis et emissiones, et hae quaestiones oriuntur in repositione normali, impositione, institutioni, aut usui normali, societas liberae reparationis vel subrogationis respondebit.
4. Per translationem et institutionem processus electricum filorum et anulorum, pro noxa funerum ab usu improprio ab utentibus causata (sicut exasperat, abrasiones, satis flexionis radii resultantes in damnum ad insulationem et vaginam, et problema qualitatis e fune impositione ad humilem temperiem, etc.), Beida Group adiuvabit clientibus in solvendis his qualitatibus quaestionibus.
Packaging Details:
Et determinatur per quantitatem et necessitatem quam emitis. Tractari potest.
Portus: Tianjin Port
Partus: Per Mare, Per Air, Per express.
Lego LSZH Insulatum Singulum Core Cable statim ut salutem curet et servitio professionali fruatur. Tianjin Beida Group diu terminus cumulus et innovatio facultatem fac nos socium tuum fidelissimum. Per funem altum qualitas products et operas professionales, tecum operabimur ut ratio tutior ac magis environmentally- amica potentiae aedificetur.
