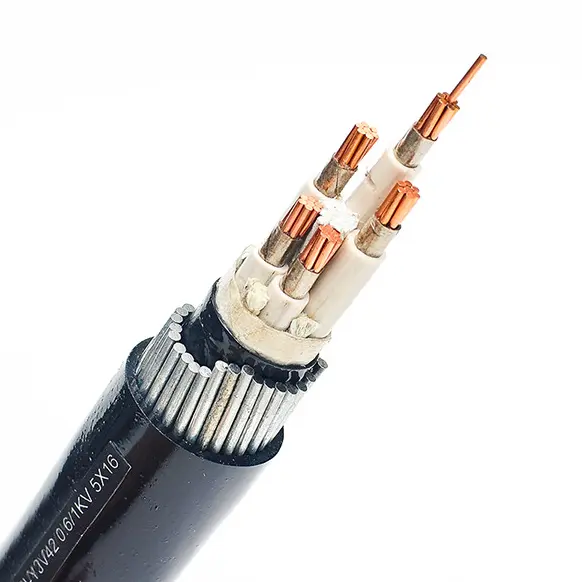

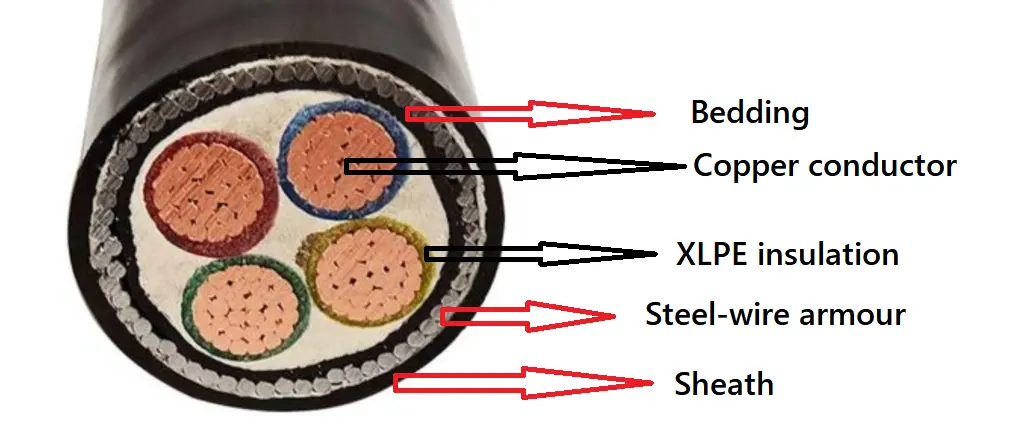

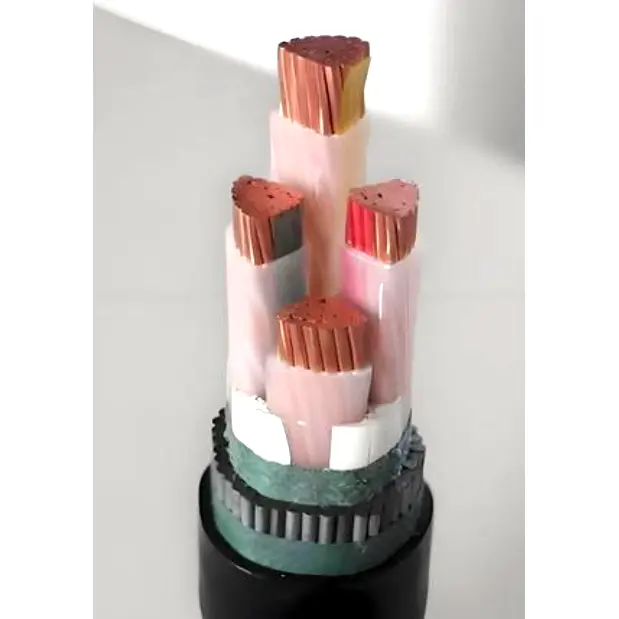

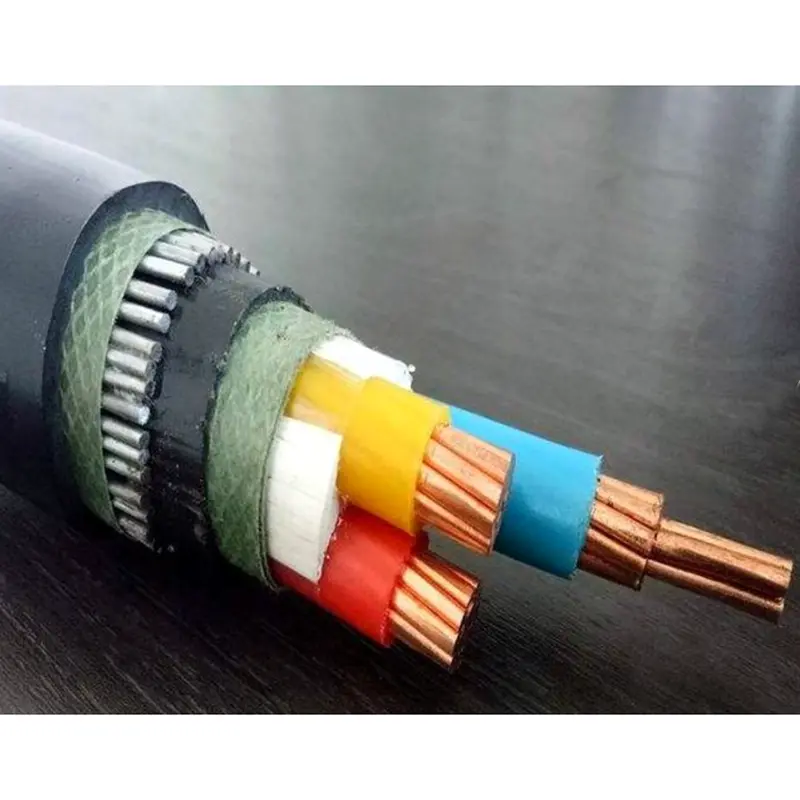

XLPE Insulata PVC inuoluta SWA Potentia Cable componitur ex conductore aeris T1R, insulatione XLPE, PVC inuoluens taeniola Chalybeorum armatura et PVC vagina.
Communia funerum genera sunt YJV32, ZC-YJV32, ZB-YJV 32, ZA-YJV 32, ZCN-YJV 32, ZBN-YJV32, ZCN-YJV32, CU/XLPE/PVC/SWA/PVC, CU/MICA/XLPE/PVC/SWA/PVC.
XLPE Insulata PVC inuoluta SWA Potentia Cable componitur ex conductore aeris T1R, insulatione XLPE, PVC inuoluens taeniola Chalybeorum armatura et PVC vagina.
Conductor: Aeris vel Aluminium conductor, rotundus stans vel conformatus, Classis 2 ad IEC 60228
and GB/T 3956-2008, For cross-section area non plus quam 6mm2A solidum rotundum
conductor adhiberi potest, Classis 1 ad IEC 60228 et GB/T 3956-2008.
Insulatio: Insulatio crassitudo, proprietas materialis erit ut per IEC 60502 et GB/T 12706.
Core Color: 1 core: red vel flavo vel viridi vel caeruleo vel nigro
II coros: rubrum, caeruleum vel rubrum, nigrum
3 coros: flavus, viridis, ruber vel ruber, flavus, caeruleus
4 coros: flavus, viridis, ruber, caeruleus vel ruber, flavus, caeruleus, niger
5 coros: flavus, viridis, ruber, caeruleus, niger vel ruber, flavus, caeruleus, niger, viridis
Supra 5 coes: nuclei albi cum nigro numero vel diversicolores vitta
Interiora integu- menta: Interiora velamina extrui possunt vel lambuntur. Materiae aptae erunt ad funem operantem et cum materia insulativa compatibilia.
Steel-fila armour: In multicore retinacula arma in interiori velamine filis ferreis obsequentes applicabuntur. Unius retinae ad usum in a.c. systemata e filis chalybis non magneticis constant.
Vagina exterior: Vagina crassitudo, proprietas materialis erit ut per IEC 60502 et GB/T 12706.
Funis flammeus retardans: flammeum PVC vagina exterioris materiae adhibebitur. Gradus retardant flamma in tria genera distingui possunt: Bunch A, B, C;
Funis reluctatio ignis: Duae tabulae Micae taeniola circum conductor circumvoluta erunt.
Ratum voltage: 0.6/1 kV
Test intentione: 3.5kV pro 5 minutis nulla fractura occurrit
Temperatus operandi: -5º C ad +90 C
Circulus brevis temperatus: +250 ºC
Minimum Flexing Flexing radij: 15* OD;
Minimum Static Bending radii: 10* OD;
Cable test:
1. Conductor DC resistentiae test: 20ºC conductor DC resistentiae obtemperabit GB/T 3956-2008, IEC 60228.
2. AC voltage test: 3.5kV/5min, nullum naufragii.
Sampling test:
1. Conductor structurae inspectionis: Competet technicis requisitis GB/T 3956-2008, IEC 60228.
2. Magnitudo insulationis, liniationis, ferri taenioli armorum et vaginae structurae exigentiis GB/T 12706.1-2020, IEC 60502.1.
Clongatio scelerisque test:
Sampling et probatio rationes servabunt praescriptis GB/T 2951.21-2008, IEC 60811-2-1, Caput IX, et proventus praescriptis GB/T 12706.1-2020, IEC 60502.1.
Typus test:
Mechanica et physica probatio insulationis et vaginae perficiendi requisitis GB/T 12706.1-2020 et IEC 60502.1.
Electricae observantia cum GB/T 12706.1-2020, IEC 60502.1 . obtemperabit
Unius funis ustio testium implebit GB/T 19666-2019, IEC 60332.
Flamma conglutinata retardat experimentum funis exigentiis GB/T 19666-2019, IEC 60332.
Ignis resistentia probatio funerum servatis GB/T 19666-2019 et IEC 60331.
Current-portandi facultatem in amperes（A）
|
Rated voltage 0.6/1kV XLPE Nulla potentia cable |
|||||||||
|
vena-portandi facultatem in amperes. |
|||||||||
|
Ambiens temperatus：in aere：40℃，in terra：25℃ |
|||||||||
|
Conductor tempparature：90℃ |
|||||||||
|
Soli scelerisque resistentia coefficientis：1.0k·m/W |
|||||||||
|
Type |
CU/XLPE/PVC, AL/XLPE/PVC, CU/XLPE/PVC/STA/PVC, AL/XLPE/PVC/STA/PVC, CU/XLPE/PVC/AWA/PVC, AL/XLPE/PVC/AWA/PVC |
|
CU/XLPE/PVC, AL/XLPE/PVC, CU/XLPE/PVC/STA/PVC, AL/XLPE/PVC/STA/PVC, CU/XLPE/PVC/SWA/PVC, AL/XLPE/PVC/SWA/PVC |
||||||
|
Numerus core |
una core |
|
Multi corei |
||||||
|
Crux area, mm2 |
in aere |
in terram |
|
in aere |
in terram |
||||
|
Cu |
Al |
Cu |
Al |
|
Cu |
Al |
Cu |
Al |
|
|
1.5 |
27 |
— |
40 |
— |
|
21 |
— |
27 |
— |
|
2.5 |
37 |
28 |
54 |
41 |
|
26 |
21 |
33 |
27 |
|
4 |
51 |
39 |
72 |
56 |
|
34 |
26 |
43 |
32 |
|
6 |
65 |
52 |
92 |
74 |
|
44 |
35 |
56 |
42 |
|
10 |
92 |
70 |
125 |
95 |
|
56 |
45 |
70 |
54 |
|
16 |
120 |
94 |
165 |
130 |
|
77 |
59 |
94 |
69 |
|
25 |
160 |
120 |
215 |
165 |
|
100 |
78 |
120 |
90 |
|
35 |
195 |
150 |
260 |
200 |
|
130 |
100 |
155 |
115 |
|
50 |
240 |
185 |
315 |
240 |
|
160 |
125 |
185 |
135 |
|
70 |
300 |
235 |
390 |
300 |
|
195 |
150 |
220 |
165 |
|
95 |
370 |
285 |
470 |
365 |
|
245 |
190 |
270 |
200 |
|
120 |
430 |
335 |
540 |
415 |
|
300 |
230 |
320 |
240 |
|
150 |
495 |
385 |
605 |
470 |
|
350 |
270 |
365 |
275 |
|
185 |
575 |
445 |
690 |
535 |
|
400 |
310 |
410 |
310 |
|
240 |
680 |
530 |
805 |
625 |
|
465 |
360 |
465 |
355 |
|
300 |
790 |
610 |
905 |
705 |
|
550 |
430 |
540 |
410 |
|
400 |
925 |
725 |
1045 |
815 |
|
— |
— |
— |
— |
|
500 |
1075 |
845 |
1185 |
935 |
|
— |
— |
— |
— |
|
630 |
1245 |
995 |
1345 |
1075 |
|
— |
— |
— |
— |
|
Nota: arma plicarum nucleorum unius materiae non magneticae factae sunt. |
|||||||||
Packaging Details:
Et determinatur per quantitatem et necessitatem quam emitis. Tractari potest.
Portus: Tianjin Port
Partus: Per Mare, Per Air, Per express.
