Elige Beida ut tuum H05VV-F H03VV-F PVC Flexibile Multi Core Cable fabrica et supplementum, optimum productum cum optionibus nativus offerre possumus.

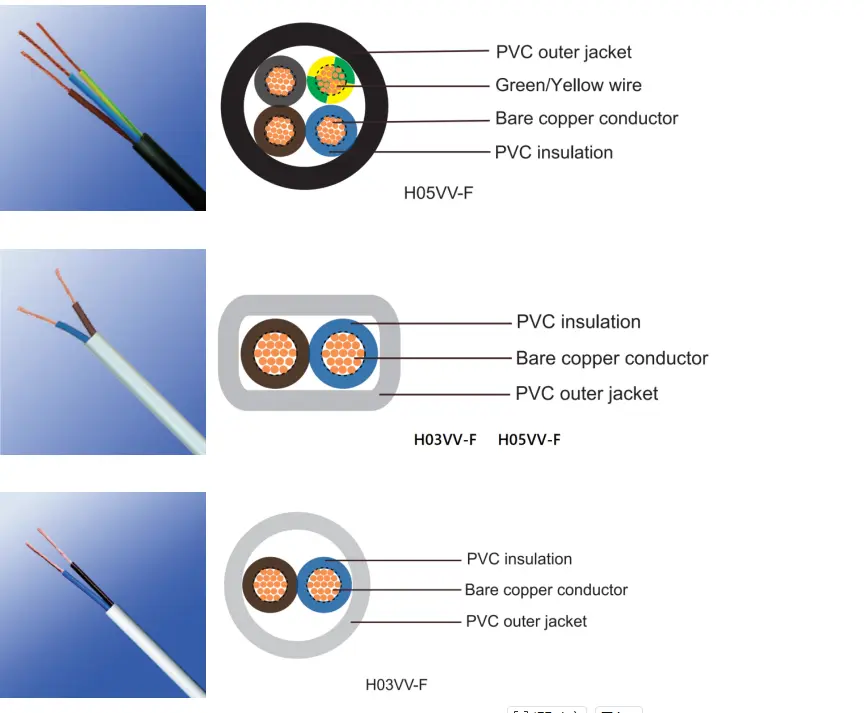

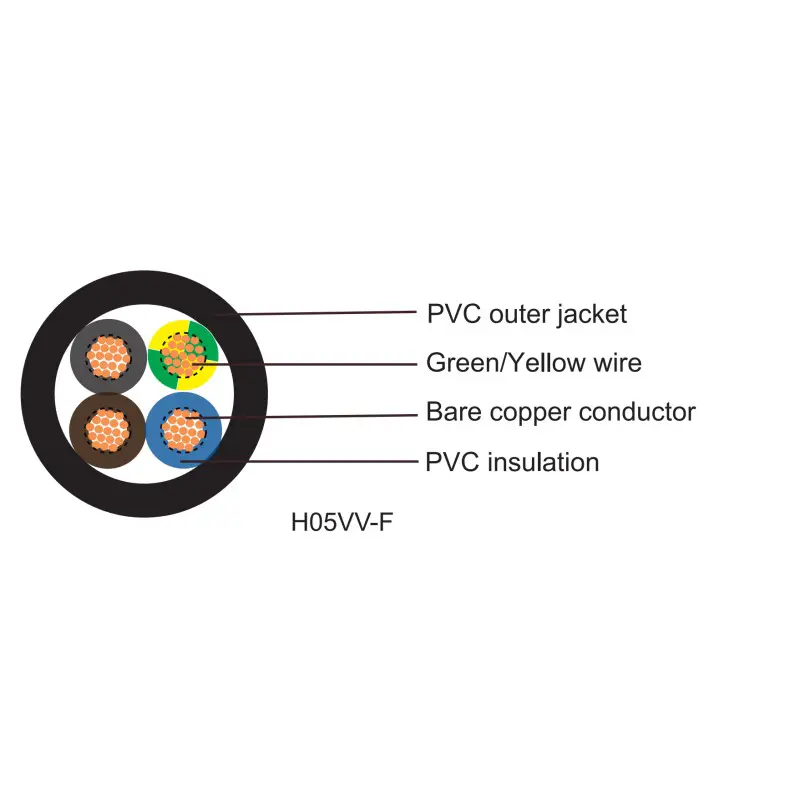

H05VV-F, H05VH2-F, H03VV-F, H03VVH2-F componitur e Classis V fine aeris conductores, PVC velit et vagina plumbea liberorum.
Conductor: : conductor aeris fine obsecutus EN 60228 cl-5
Insulatio: compositio Polyvinylchloridis TI 2 secundum EN 50363-3
Vagina: mixtum Polyvinylchloridum TM 2 secundum EN 50363-4-1
Funis potestas instrumenta et instrumenta domus
Potestas funes seu retinacula moderandi pro instrumentis industrialibus et metris
Internum wiring imperium repositoria
Fila connectens pro institutionibus electricis et extensionibus temporariis.
Hae H05VV-F H03VV-F PVC Flexibiles Multi Core Rudentes ad vaginam coloris albi non sunt apti ad usum velit.
Funes non attingunt cum alio fonte caloris.
H03VV-F H03VVH2-F voltage: 300/300V

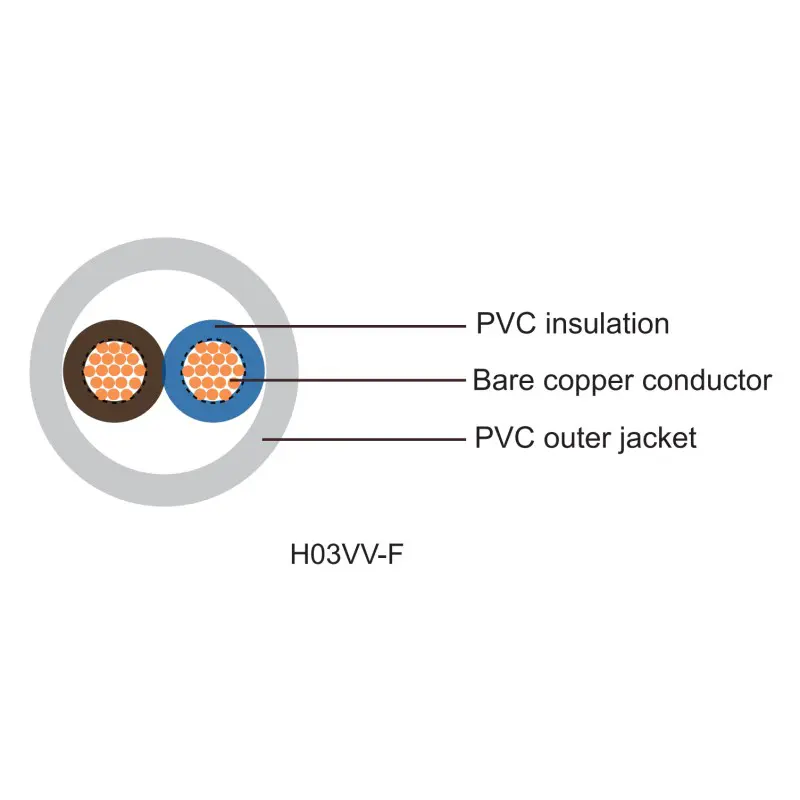

Magnitudines cables: cables circulr 0.5mm2et 0.75mm22,3 et 4 coros;

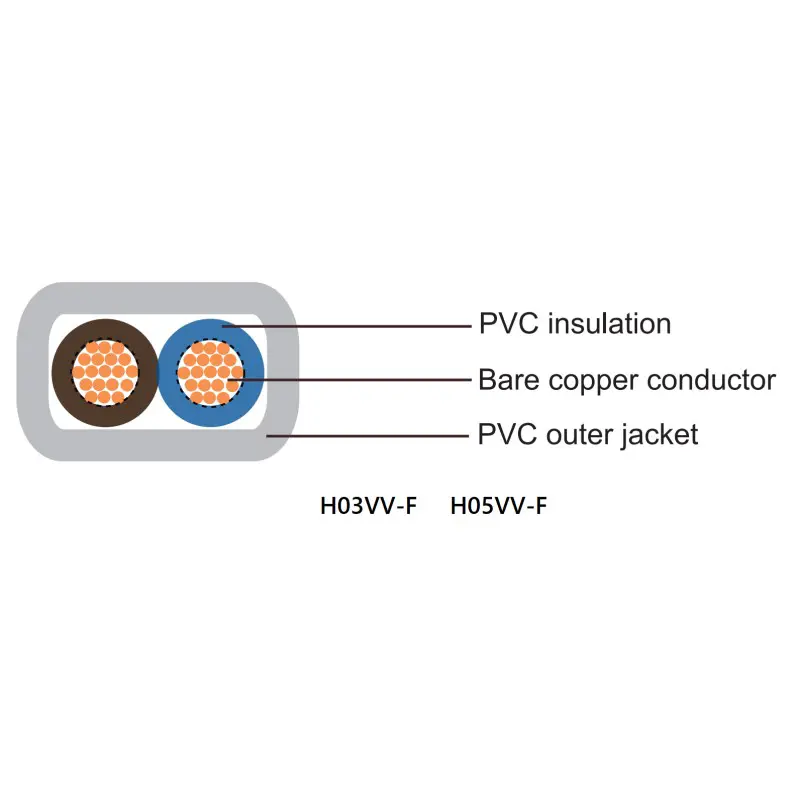

plana rudentes 0.5mm2et 0.75mm22 coros tantum;
H05VV-F H05VH2-F voltage: 300/500V
Magnitudines funes: retinacula circulr 0.75mm2et 4mm22,3,4 et 5 coros;
plana rudentes 0.75mm2et 1.5mm22 coros tantum;
Conductor DC resistentiae in 20º C： secundum EN 60228
Rated Temperature: 70℃
Test intentione: 2000 voltae pro 5min, nulla fractura occurrit
Temperatus operandi: -5ºC ad +70ºC
Radii flexionis: 7.5
Circulus brevis temperatus: +160 ºC
Flamma retardat: secundum IEC 60332-1-2
Dimensionales probationes ac velit resistentiam apud 70ºC vide infra sheet
|
Type |
Conductor |
Dimensio Insulation et Vagina |
Max Insulation Resistentia apud LXX |
||||
|
Nominal Area |
Structura conductoris |
Insulation Crassitudo |
Vagina Crassitudo |
Super Diameter |
|||
|
(mm) |
|||||||
|
mm |
No./mm |
mm |
mm |
Min |
Max |
MΩ·km |
|
|
H05VV-F 300/500V |
2×0.75 |
24/0.20 |
0.6 |
0.8 |
5.7 |
7.2 |
0.011 |
|
2×1 |
32/0.20 |
0.6 |
0.8 |
5.9 |
7.5 |
0.010 |
|
|
2×1.5 |
30/0.25 |
0.7 |
0.8 |
6.8 |
8.6 |
0.010 |
|
|
2×2.5 |
50/0.25 |
0.8 |
1.0 |
8.4 |
10.6 |
0.009 |
|
|
3×0.75 |
24/0.20 |
0.6 |
0.8 |
6.0 |
7.6 |
0.011 |
|
|
3×1 |
32/0.20 |
0.6 |
0.8 |
6.3 |
8.0 |
0.010 |
|
|
3×1.5 |
30/0.25 |
0.7 |
0.9 |
7.4 |
9.4 |
0.010 |
|
|
3×2.5 |
50/0.25 |
0.8 |
1.1 |
9.2 |
11.4 |
0.009 |
|
|
4×0.75 |
24/0.20 |
0.6 |
0.8 |
6.6 |
8.3 |
0.011 |
|
|
4×1 |
32/0.20 |
0.6 |
0.9 |
7.7 |
9.0 |
0.010 |
|
|
4×1.5 |
30/0.25 |
0.7 |
1.0 |
8.4 |
10.5 |
0.010 |
|
|
4×2.5 |
50/0.25 |
0.8 |
1.1 |
10.1 |
12.5 |
0.009 |
|
|
5×0.75 |
24/0.20 |
0.6 |
0.9 |
7.4 |
9.3 |
0.011 |
|
|
5×1 |
32/0.20 |
0.6 |
0.9 |
7.8 |
9.8 |
0.010 |
|
|
5×1.5 |
30/0.25 |
0.7 |
1.1 |
9.3 |
11.6 |
0.010 |
|
|
5×2.5 |
50/0.25 |
0.8 |
1.2 |
11.2 |
13.9 |
0.009 |
|
|
2×4 |
56/0.30 |
0.8 |
1.1 |
9.7 |
12.1 |
0.007 |
|
|
3×4 |
56/0.30 |
0.8 |
1.2 |
10.5 |
13.1 |
0.007 |
|
|
4×4 |
56/0.30 |
0.8 |
1.2 |
11.5 |
14.3 |
0.007 |
|
|
5×4 |
56/0.30 |
0.8 |
1.4 |
13.0 |
16.1 |
0.007 |
|
|
H05VH2-F 300/500V |
2×0.75 |
24/0.20 |
0.6 |
0.8 |
3.7×6.0 |
4.5×7.2 |
0.011 |
|
2×1 |
32/0.20 |
0.6 |
0.8 |
3.9×6.2 |
4.7×7.5 |
0.010 |
|
|
H03VV-F 300/300V |
2×0.5 |
16/0.20 |
0.5 |
0.6 |
4.6 |
5.9 |
0.011 |
|
2×0.75 |
24/0.20 |
0.5 |
0.6 |
4.9 |
6.3 |
0.010 |
|
|
3×0.5 |
16/0.20 |
0.5 |
0.6 |
4.9 |
6.3 |
0.011 |
|
|
3×0.75 |
24/0.20 |
0.5 |
0.6 |
5.2 |
6.7 |
0.010 |
|
|
4×0.5 |
16/0.20 |
0.5 |
0.6 |
5.4 |
6.9 |
0.011 |
|
|
4×0.75 |
24/0.20 |
0.5 |
0.6 |
5.7 |
7.3 |
0.010 |
|
|
H03VH2-F 300/300V |
2×0.75 |
24/0.20 |
0.5 |
0.6 |
3.0×4.9 |
3.7×5.9 |
0.011 |
|
2×1 |
32/0.20 |
0.5 |
0.6 |
3.2×5.2 |
3.8×6.3 |
0.010 |
|
Packaging Details:
Et determinatur per quantitatem et necessitatem quam emitis. Tractari potest.
Portus: Tianjin Port
Partus: Per Mare, Per Air, Per express.
I) esne fabrica vel negotiatione societas?

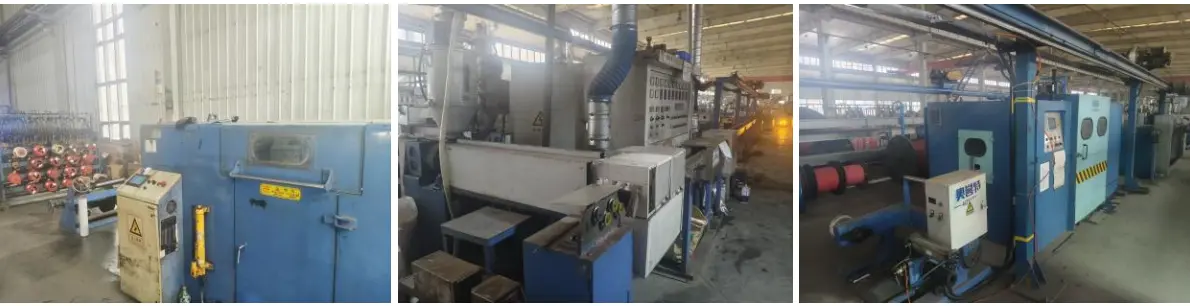

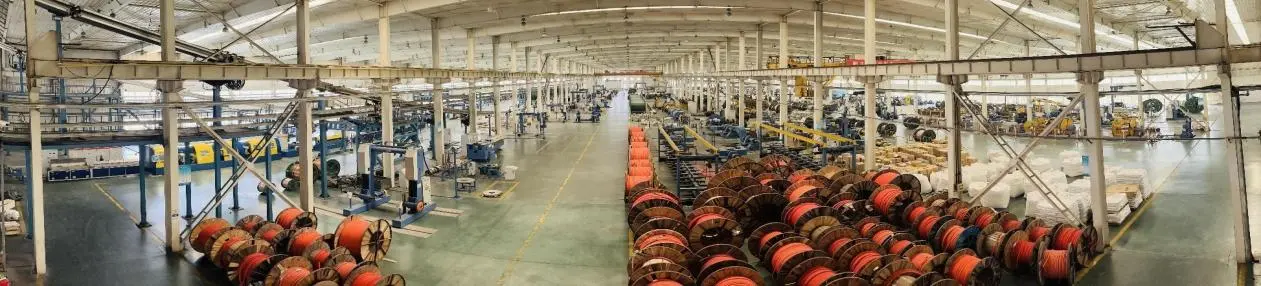

Tianjin Beida Group in 1989 condita est cum relatus capitis 255,78 decies centena Yuan. Nota loci in Tianjin est, et 34 annos funis historiae professionalis fabricandae habet.
2) Possumne iubere funem/filum qui minor est quam tua quantitas minima ordinis?
Num quid sit inventarium in horreis inspicias necesse est. Si est, ordo potest poni; sin minus, tempus exspectare debes nostrae officinae ad novos fructus praeparandos.
3) An exemplaria free shipping?
Dolemus, in latere emptoris debet esse.
4) Quomodo retinacula flammea indicatur?
Fila electrica et retinacula flammea plerumque in duo genera maiora divisa sunt. Unius categoriae est secundum flammae verticalis propagationis experimentum unius filis et emissis, et alterum secundum experimentum flammae verticalis divulgatae filis verticaliter elevatis seu ligamen (abbreviatum sicut flamma fasciculi test.). Fascis flamma testium amplius in quattuor subcategorias dividitur: Categoria A, Categoria B, Categoria C, Categoria D.
