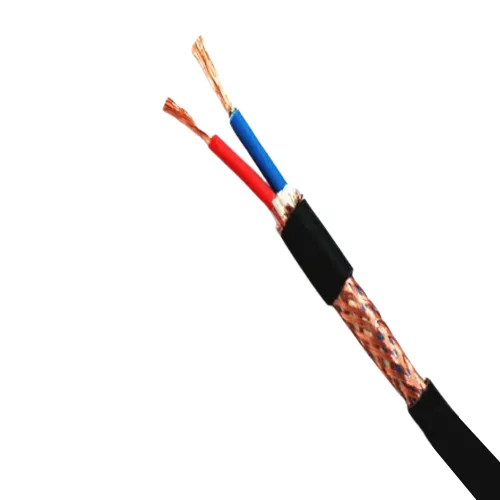

Beida est filum professionale et funis in Sinis, inter producta nostra, RVVP PVC Fila insulata tegumenta, cum singulari bracteis aeneis strato protegente, dux factus est in impedimento anti-electromagnetico (EMI). Hoc consilium externum impedimentum efficaciter separat ac signum transmissionis stabili ac perspicuo efficit. Cum traditis RVV funes, RVVP praestantior est in anti- impedimento facultatis, praesertim ad apparatum et systemata aptissima, cum altissimis requisitis ad insignem integritatem. Utrum praecisio sit moderatio in agro automationis industrialis an alta praecisio requisita ad communicationem et auditionem et ad videndum tradendum, RVVP rudentes ideales sunt. Potest conservare puritatem et constantiam signi in longo spatio transmissionis vel impedimenti ambitus validi, cum praestans electricae effectus.
|
300/300 volts: RVVP |
|||||||||
|
Rated Temperature: 70℃ |
|||||||||
|
Standard: JB/T 8734.3 : RVV |
|||||||||
|
Type |
Conductor |
Dimensio Insulation et Vagina |
Electrical Characteristic |
||||||
|
Nominal Area |
Structura conductoris |
Insulation Crassitudo |
Extrinsecus coverage density |
Vagina Crassitudo |
Super Diameter (mm) |
Resistentia conductor ad 20 Max |
Max Insulation Resistentia apud LXX |
||
|
mm |
No./mm |
mm |
% |
mm |
Min |
Max |
Ω／km |
MΩ·km |
|
|
RVVP 300/300V |
2×0.5 |
16/0.20 |
0.5 |
80 |
0.6 |
5.3 or |
6.8 or |
39.0 |
0.012 |
|
3.7×5.6 |
4.5×6.8 |
||||||||
|
2×0.75 |
24/0.20 |
0.5 |
80 |
0.6 |
5.8 or |
7.4 or |
26.0 |
0.010 |
|
|
4.0×6.1 |
4.8×7.4 |
||||||||
|
2×1 |
32/0.20 |
0.6 |
80 |
0.6 |
6.4 or |
8.2 or |
19.5 |
0.011 |
|
|
4.3×6.7 |
5.2×8.3 |
||||||||
|
2×1.5 |
30/0.25 |
0.6 |
80 |
0.8 |
7.3 or |
9.2 or |
13.3 |
0.0094 |
|
|
4.9×7.6 |
6.0×9.3 |
||||||||
|
2×2.5 |
50/0.25 |
0.7 |
80.0 |
1.0 |
8.8 |
11.7 |
7.98 |
0.0086 |
|
|
2×4 |
56/0.30 |
0.8 |
80.0 |
1.2 |
10.6 |
13.9 |
4.95 |
0.0079 |
|
|
3×0.5 |
16/0.20 |
0.5 |
80.0 |
0.6 |
5.6 |
7.1 |
39.0 |
0.012 |
|
|
3×0.75 |
24/0.20 |
0.5 |
80.0 |
0.6 |
6.1 |
7.8 |
26.0 |
0.010 |
|
|
3×1 |
32/0.20 |
0.6 |
80.0 |
0.8 |
7.2 |
9.1 |
19.5 |
0.011 |
|
|
3×1.5 |
30/0.25 |
0.6 |
80.0 |
0.8 |
8.0 |
10.0 |
13.3 |
0.0094 |
|
|
3×2.5 |
50/0.25 |
0.7 |
80.0 |
1.0 |
9.5 |
12.6 |
7.98 |
0.0086 |
|
|
3×4 |
56/0.30 |
0.8 |
80.0 |
1.2 |
11.5 |
14.9 |
4.95 |
0.0079 |
|
|
4×0.5 |
16/0.20 |
0.5 |
80.0 |
0.8 |
6.5 |
8.9 |
39.0 |
0.012 |
|
|
4×0.75 |
24/0.20 |
0.6 |
80.0 |
0.8 |
6.8 |
9.3 |
26.0 |
0.010 |
|
|
4×1 |
32/0.20 |
0.6 |
80.0 |
0.9 |
7.8 |
10.5 |
19.5 |
0.011 |
|
|
4×1.5 |
30/0.25 |
0.7 |
80.0 |
0.9 |
8.4 |
11.5 |
13.3 |
0.0094 |
|
|
4×2.5 |
50/0.25 |
0.8 |
80.0 |
1.0 |
10.1 |
13.6 |
7.98 |
0.0086 |
|
|
5×0.5 |
16/0.20 |
0.5 |
80.0 |
0.8 |
7.0 |
9.5 |
39.0 |
0.012 |
|
|
5×0.75 |
24/0.20 |
0.6 |
80.0 |
0.8 |
7.4 |
10.0 |
26.0 |
0.010 |
|
|
5×1 |
32/0.20 |
0.6 |
80.0 |
0.9 |
8.5 |
11.3 |
19.5 |
0.011 |
|
|
5×1.5 |
30/0.25 |
0.7 |
80.0 |
1.0 |
9.6 |
12.6 |
13.3 |
0.0094 |
|
|
5×2.5 |
50/0.25 |
0.8 |
80.0 |
1.1 |
11.5 |
14.9 |
7.98 |
0.0086 |
|
Funes enim ignei repugnantes, duo stratae taeniolae speculatoriae circum conductorem vulnerant, ex incremento 2-3mm in diametro exteriore.
Fila RVVP PVC Insulated Screened non solum praestantem effectum habent, sed etiam multa signa internationalia et certificationes conveniunt, ut certificationes CCC et GB/T 19666-2019 norma, demonstrans earum excellentem qualitatem in terminis electricis salutem, anti-incessionem et diuturnitatem. Beida Group stricte sequitur IEC 60228, IEC 60332 aliaque internationalis qualitas signa, et quisque funis stricte probatus est ut princeps qualitas efficiat. Utrum sit temperatura mutationes, tentatio an ignis resistentia, RVVP funes restrictis requisitis conveniant, permittens clientibus ut tuto in omni ambitu utatur et diuturno stabilis effectu gaudeat.
CCC certificatorium
GB/T 5023.5-2008
GB/T 19666-2019
1. Opus voltage: 300/300 volts: RVVP
2. Test voltage: 1500 volts pro 5min
3. Opus temperatum: -5º C ad +70º C
4. Vertens radii: 7.5
5. Brevis circuitus temperatus: +160 C
6. Flamma retardat: Testa flammae verticalis pro una fila propagationis, experimentum flammae verticalis divulgatae filis verticaliter impositis seu nexilibus categoriis A, B, C, D conformis vexillum IEC 60332, GB/T 19666, GB/T 18380, secundum exigentiam emptoris.
7. Ignis resistentia: 750°C 90 min, secundum regulam IEC 60331, GB/T 19666, GB/T 19216
