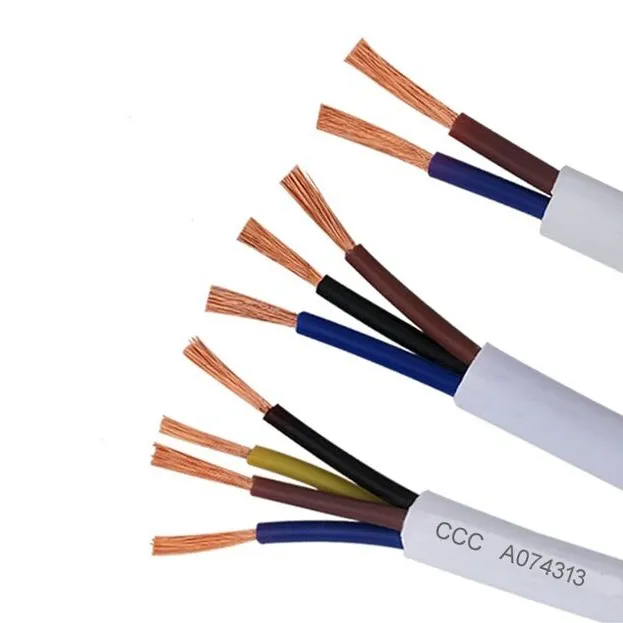

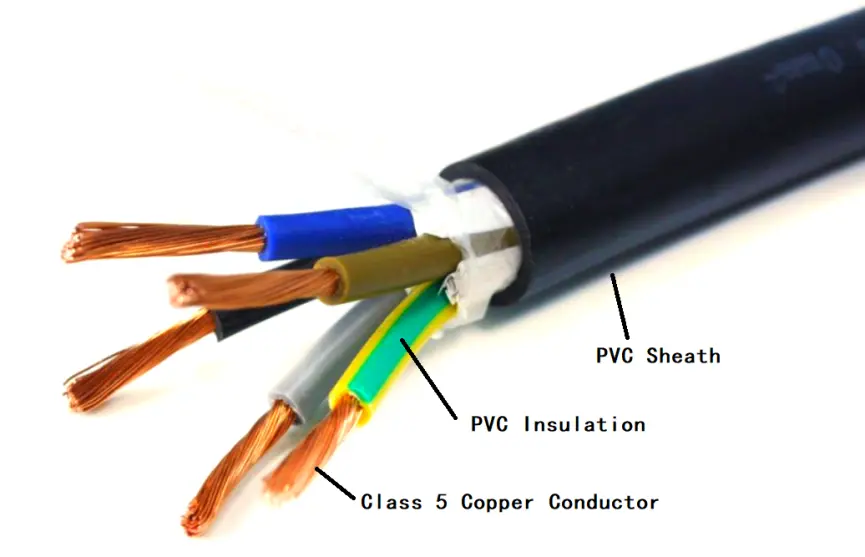

IEC 60227 RVV PVC Insulated Multi-Core Cable unus ex productorum Beida est, opificem professionalem in CHina sumus. Egregiis electricae effectus, multi-industria praelatus factus est. Ductor eius DC resistentia est humilis, efficaciter minuens industriam amissionem, potentiae transmissionis efficientiam valde meliore. Funis hic aptus est ad extremas temperaturas, operantem range-5 C ad 70 C temperaturam, et potest sustinere caliditatem 160ºC in casu circuii brevis, salutem in omnibus ambitibus procurans. Eodem tempore, operationem stabilem tueri potest systematis electricae per 2kV experimentum voltage detectionis, quae est optima electio ad altam fidem et durabilitatem potentiae systematis consequendam.
Hic funis flexibilis et late usus est in fabricandis wiring, instrumentis industrialibus, scriniis electricae potestate, electricis institutionibus temporariis et aliis missionibus. Inflexio eius radius parvus est, quinquies tantum diametri exterioris, facile inauguratus, et parvis et implicatis spatiis facile tolerare potest. Praeterea color coding vel arabicus signum numeralis insulationis designans adiuvat utentes cito circuitus cognoscere et efficaciam laboris emendare. IEC 60227 RVV funem, structuram stabilem, durabilitatem, frequentes reponendas angustias minuere, particeps electricae confidit tua!
1. Parvus radius incurvus (5 times diametri exterioris), facile ad institutionem.
1. Provide color-coded velit vel numeri Arabic notati velit pro facile circuitu identificatio
2. temperatura operating range: -5º℃ ad +70º℃
3. brevis-circuitus temperatus + CLX C
4. Ratum voltage: 300/500 volts: 60227 IEC 53、60227 IEC 53（RVV）、 RVV
6. Test voltage: 2 kv pro 5 minutes sine naufragii
7. 20ºC conductor DC resistentiae (GB/T 3956-2008 standard)
8. Unius flamma verticalis testium retardat secundum GB/T 19666-2019 vexillum
9. Flamma retardatio (A, B, C, D) test secundum GB/T 19666 - 2019 vexillum (optional) resistentiam ignis test secundum GB/T 19666 - 2019 vexillum (optional) back
Productum consilium: dimensio et Insulation Resistentia
|
Type |
Conductor |
Dimensio Insulation et Vagina |
Max Insulation Resistentia apud LXX |
||||
|
Nominal Area |
Structura conductoris |
Insulation Crassitudo |
Vagina Crassitudo |
Super Diameter |
|||
|
(mm) |
|||||||
|
mm |
No./mm |
mm |
mm |
Min |
Max |
MΩ·km |
|
|
60227 IEC 52 300/300V; 60227 IEC 52(RVV) 300/300V |
2×0.5 |
16/0.20 |
0.5 |
0.6 |
4.6 or |
5.9 or |
0.012 |
|
3.0×4.9 |
3.7×5.9 |
||||||
|
2×0.75 |
24/0.20 |
0.5 |
0.6 |
4.9 |
6.3 |
0.010 |
|
|
3.2×5.2 |
3.8×6.3 |
||||||
|
3×0.5 |
16/0.20 |
0.5 |
0.6 |
4.9 |
6.3 |
0.012 |
|
|
3×0.75 |
24/0.20 |
0.5 |
0.6 |
5.2 |
6.7 |
0.010 |
|
|
60227 IEC 53 300/500V; 60227 IEC 53(RVV) 300/500V |
2×0.75 |
24/0.20 |
0.6 |
0.8 |
5.7 or |
7.2 or |
0.011 |
|
3.7×6.0 |
4.5×7.2 |
||||||
|
2×1 |
32/0.20 |
0.6 |
0.8 |
5.9 |
7.5 |
0.010 |
|
|
3.9×6.2 |
4.7×7.5 |
||||||
|
2×1.5 |
30/0.25 |
0.7 |
0.8 |
6.8 |
8.6 |
0.010 |
|
|
2×2.5 |
50/0.25 |
0.8 |
1.0 |
8.4 |
10.6 |
0.009 |
|
|
3×0.75 |
24/0.20 |
0.6 |
0.8 |
6.0 |
7.6 |
0.011 |
|
|
3×1 |
32/0.20 |
0.6 |
0.8 |
6.3 |
8.0 |
0.010 |
|
|
3×1.5 |
30/0.25 |
0.7 |
0.9 |
7.4 |
9.4 |
0.010 |
|
|
3×2.5 |
50/0.25 |
0.8 |
1.1 |
9.2 |
11.4 |
0.009 |
|
|
4×0.75 |
24/0.20 |
0.6 |
0.8 |
6.6 |
8.3 |
0.011 |
|
|
4×1 |
32/0.20 |
0.6 |
0.9 |
7.7 |
9.0 |
0.010 |
|
|
4×1.5 |
30/0.25 |
0.7 |
1.0 |
8.4 |
10.5 |
0.010 |
|
|
4×2.5 |
50/0.25 |
0.8 |
1.1 |
10.1 |
12.5 |
0.009 |
|
|
5×0.75 |
24/0.20 |
0.6 |
0.9 |
7.4 |
9.3 |
0.011 |
|
|
5×1 |
32/0.20 |
0.6 |
0.9 |
7.8 |
9.8 |
0.010 |
|
|
5×1.5 |
30/0.25 |
0.7 |
1.1 |
9.3 |
11.6 |
0.010 |
|
|
5×2.5 |
50/0.25 |
0.8 |
1.2 |
11.2 |
13.9 |
0.009 |
|
|
RVV 300/500V |
2×1.5 |
30/0.25 |
0.7 |
0.8 |
4.3×6.0 |
5.8×8.6 |
0.011 |
|
2×2.5 |
50/0.25 |
0.8 |
1.0 |
5.3×7.6 |
7.1×10.6 |
0.0095 |
|
|
2×4 |
56/0.30 |
0.8 |
1.1 |
10.0 or * |
12.4 or |
0.0079 |
|
|
5.9×8.6 |
7.9×11.8 |
||||||
|
3×4 |
56/0.30 |
0.8 |
1.2 |
10.8 |
13.5 |
0.0079 |
|
|
4×4 |
56/0.30 |
0.8 |
1.2 |
11.8 |
14.6 |
0.0079 |
|
|
5×4 |
56/0.30 |
0.8 |
1.4 |
13.3 |
16.5 |
0.0079 |
|
|
2×6 |
84/0.30 |
0.8 |
1.1 |
10.6 or |
13.9 or |
0.0069 |
|
|
6.5×10.0 |
8.8×13.4 |
||||||
|
3×6 |
84/0.30 |
0.8 |
1.2 |
11.5 |
15.0 |
0.0069 |
|
|
4×6 |
84/0.30 |
0.8 |
1.2 |
12.7 |
16.4 |
0.0069 |
|
|
5×6 |
84/0.30 |
0.8 |
1.4 |
14.3 |
18.4 |
0.0069 |
|
GB/T 5023.5-2008
GB/T 19666-2019
Internum wiring imperii repositoria, instrumenta electrica et instrumenta.
Potestas funes pro machinis, instrumentis et instrumentis.
Aedificium wiring adhibetur ad illustrandum, bases et circuitus secundarios (subiectis codicibus localibus).
Temporaria institutiones electricas et extensiones.
Eligens Tianjin Beida non solum electio IEC 60227 RVV PVC Multi-Core Cable Insulated, sed etiam certae diu terminus particeps. Funis nostri producti late in potestate, constructione, constructione, petrochemico, metallurgia et aliis industriis usi sunt, et a multis inceptis et clientibus notis agniti sunt. Inceptis technologicis evolutionis inceptis instamus ac magnam pecuniae quantitatem investigationis et evolutionis quotannis collocamus, ut unumquodque productum habeat mercaturae technologicae utilitates. Utrum severa moderatio qualitatis vel celeri responsionis necessitatibus emptoribus committatur, ut summa qualitas products et officia provideat.
Eme nunc et experire Tianjin Beida qualitatem optimam, validam sustentationem et tutelam tuae systematis electricae praebens!
