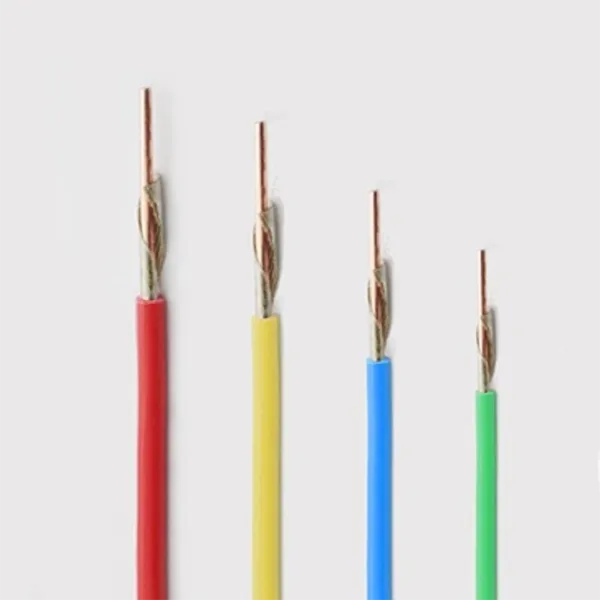

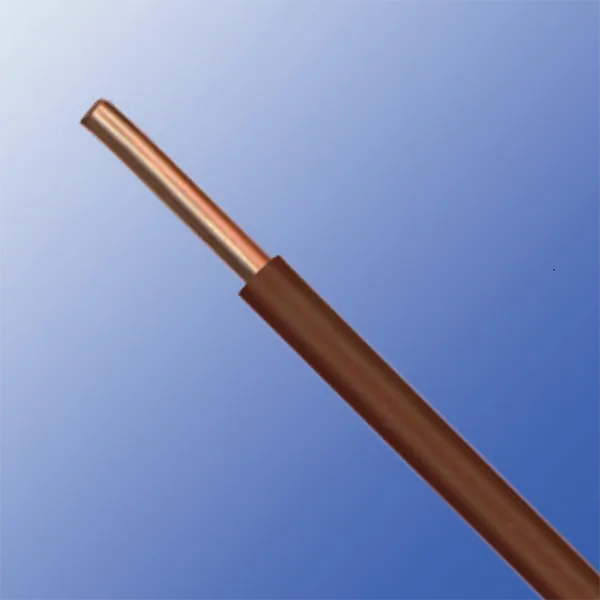

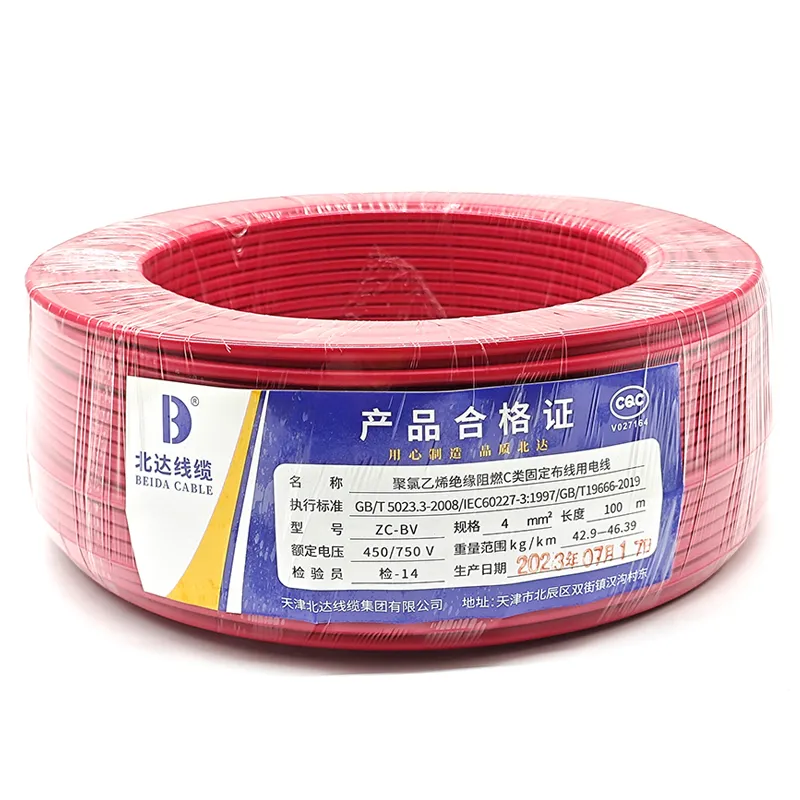

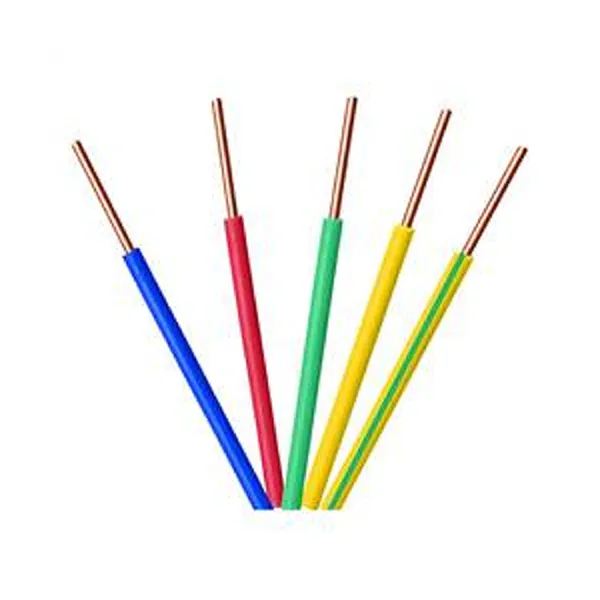

Beida IEC 60227 Singulus Core PVC Cable constat ex conductore aeris T1R ac libero PVC strato insulationis plumbi conformis, vexillum IEC, GB vexillum, vexillum Britannicum, etc. Funem CE certificatus est et praecipuas physicas electricas et mechanicas proprietates habet. Secundum Lorem exigentiis, hi rudentes in IEC 60332-1 subiciuntur unius flammae verticalis propagationis test vel fasciculus IEC 60332-3 (categoria A, B, C, D) flammae propagationis test.
|
Type |
Conductor |
Insulation |
Electrical Characteristic |
|||
|
Nominal Area |
Structura conductoris |
Insulation Crassitudo |
Super Diameter |
Resistentia conductor ad 20 Max |
||
|
(mm) |
||||||
|
mm |
No./mm |
mm |
Min |
Max |
Ω／km |
|
|
60227IEC05 60227IEC05(BV) |
0.5 |
1/0.80 |
0.6 |
1.9 |
2.3 |
39.0 |
|
0.75 |
1/0.97 |
0.6 |
2.1 |
2.5 |
26.0 |
|
|
1 |
1/1.13 |
0.6 |
2.2 |
2.7 |
19.50 |
|
|
60227IEC06 60227IEC06(RV) |
0.5 |
16/0.20 |
0.6 |
2.1 |
2.5 |
39.00 |
|
0.75 |
24/0.20 |
0.6 |
2.2 |
2.7 |
26.00 |
|
|
1 |
32/0.20 |
0.6 |
2.4 |
2.8 |
19.50 |
|
|
Type |
Conductor |
Insulation Conductor |
Electrical Characteristic |
|||
|
Nominal Area |
Structura conductoris |
Insulation Crassitudo |
Super Diameter |
Resistentia conductor ad 20 Max |
||
|
(mm) |
||||||
|
mm |
No./mm |
mm |
Min |
Max |
Ω／km |
|
|
60227IEC01 60227IEC01(BV) |
1.5 |
1/1.38 |
0.7 |
2.6 |
3.2 |
12.1 |
|
2.5 |
1/1.78 |
0.8 |
3.2 |
3.9 |
7.41 |
|
|
4 |
1/2.25 |
0.8 |
3.6 |
4.4 |
4.61 |
|
|
6 |
1/2.76 |
0.8 |
4.1 |
5 |
3.08 |
|
|
1.5 |
7/0.52 |
0.7 |
2.7 |
3.3 |
12.1 |
|
|
2.5 |
7/0.67 |
0.8 |
3.3 |
4 |
7.41 |
|
|
4 |
7/0.84 |
0.8 |
3.8 |
4.6 |
4.61 |
|
|
6 |
7/1.03 |
0.8 |
4.3 |
5.2 |
3.08 |
|
|
10 |
7/1.32 |
1.0 |
5.6 |
6.7 |
1.83 |
|
|
16 |
7/1.67 |
1 |
6.4 |
7.8 |
1.15 |
|
|
25 |
7/2.10 |
1.2 |
8.1 |
9.7 |
0.727 |
|
|
35 |
7/2.47 |
1.2 |
9 |
10.9 |
0.524 |
|
|
50 |
19/1.75 |
1.4 |
10.6 |
12.8 |
0.387 |
|
|
70 |
19/2.10 |
1.4 |
12.1 |
14.6 |
0.268 |
|
|
95 |
19/2.48 |
1.6 |
14.1 |
17.1 |
0.193 |
|
|
120 |
37/2.00 |
1.6 |
15.6 |
18.8 |
0.153 |
|
|
150 |
37/2.22 |
1.8 |
17.3 |
20.9 |
0.124 |
|
|
185 |
37/2.48 |
2 |
19.3 |
23.3 |
0.0991 |
|
|
240 |
61/2.22 |
2.2 |
22 |
26.6 |
0.0754 |
|
|
60227IEC02 60227IEC02(RV) |
1.5 |
30/0.24 |
0.7 |
2.8 |
3.4 |
13.3 |
|
2.5 |
49/0.24 |
0.8 |
3.4 |
4.1 |
7.98 |
|
|
4 |
56/0.29 |
0.8 |
3.9 |
4.8 |
4.95 |
|
|
6 |
83/0.29 |
0.8 |
4.4 |
5.3 |
3.30 |
|
|
10 |
74/0.40 |
1.0 |
5.7 |
6.8 |
1.91 |
|
|
16 |
117/0.40 |
1 |
6.7 |
8.1 |
1.21 |
|
|
25 |
182/0.40 |
1.2 |
8.4 |
10.2 |
0.78 |
|
|
35 |
256/0.40 |
1.2 |
9.7 |
11.7 |
0.554 |
|
|
50 |
367/0.40 |
1.4 |
11.5 |
13.9 |
0.386 |
|
|
70 |
320/0.51 |
1.4 |
13.2 |
16 |
0.272 |
|
|
95 |
423/0.51 |
1.6 |
15.1 |
18.2 |
0.206 |
|
|
120 |
541/0.51 |
1.6 |
16.7 |
20.2 |
0.161 |
|
|
150 |
675/0.51 |
1.8 |
18.6 |
22.5 |
0.129 |
|
|
185 |
822/0.51 |
2 |
20.6 |
24.9 |
0.106 |
|
|
240 |
1088/0.51 |
2.2 |
23.5 |
28.4 |
0.0801 |
|
|
Type |
Conductor |
Insulation Conductor |
Electrical Characteristic |
|||
|
Nominal Area |
Structura conductoris |
Insulation Crassitudo |
Super Diameter |
Resistentia conductor ad 20 Max |
||
|
(mm) |
||||||
|
mm |
No./mm |
mm |
Min |
Max |
Ω／km |
|
|
BVR |
2.5 |
19/0.40 |
0.8 |
- |
4.1 |
7.41 |
|
4 |
19/0.51 |
0.8 |
- |
4.8 |
4.61 |
|
|
6 |
19/0.63 |
0.8 |
- |
5.3 |
3.08 |
|
|
10 |
49/0.51 |
1.0 |
- |
7.3 |
1.83 |
|
|
16 |
49/0.63 |
1.0 |
- |
8.6 |
1.15 |
|
|
25 |
117/0.51 |
1.2 |
- |
10.2 |
0.727 |
|
|
35 |
163/0.51 |
1.2 |
- |
11.7 |
0.524 |
|
|
50 |
147/0.63 |
1.4 |
- |
13.9 |
0.387 |
|
|
70 |
209/0.63 |
1.4 |
- |
16 |
0.268 |
|
|
95 |
294/0.63 |
1.6 |
- |
18.2 |
0.193 |
|
|
120 |
369/0.63 |
1.6 |
- |
20.2 |
0.153 |
|
|
150 |
456/0.63 |
1.8 |
- |
22.5 |
0.124 |
|
|
185 |
570/0.63 |
2.0 |
- |
24.9 |
0.0991 |
|
450/750V：60227 IEC 01、60227 IEC 01（BV）、60227 IEC 02、60227 IEC 02（RV）、BVR
300/500V: 60227 IEC 05、60227 IEC 05（BV）、60227 IEC 06、60227 IEC 06（RV）
tentatio intentionis:
2500V：60227 IEC 01、60227 IEC 01（BV）、60227 IEC 02、60227 IEC 02（RV）、BVR
2000V：60227 IEC 05、60227 IEC 05（BV）、60227 IEC 06、60227 IEC 06（RV）
temperatus operating: -5°C ad +70°C
radii inflexi;
12.5 x Ø：60227 IEC 02、60227 IEC 02（RV）、60227 IEC 06、60227 IEC 06（RV）、BVR
15 x Ø：60227 IEC 01、60227 IEC 01（BV）、60227 IEC 05、60227 IEC 05（BV）
brevis-circuitus temperatus: +160 C
Flamma retardatur effectus: flamma verticalis divulgata experimentum unius conductoris et verticalis flammae divulgatae experimentum verticaliter inauguratus conductores vel funes (Class A, B, C, D), qui obtemperabit cum IEC 60332, GB/T 19666, GB/T 18380 signis et signis occurrentibus requisitis.
Ignis effectus: 750°C pro 90 minuta, ad normam IEC 60331, GB/T 19666, GB/T 19216 signa
Sarcina Details
Imprimis quantitas et requisita ad vos sunt ut decernant, pretium tractari possunt.
Portus: Tianjin Portus modum onerariis: mare, aerem, exprimo.
